Sierra 2.0i + VW 1.9 tdi, 1.8t Adapter

Sierra 2.0i + VW 1.9 tdi, 1.8t Adapter

€219,00 EUR
€227,00 EUR €219,00 EUR
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
Product is available to order – we will manufacture it for You! We offer over 300 adapter plate options, so adapter plates are made to order. Once you place your order, we add your adapter to our production queue. Your adapter will be ready to ship within 9 business days. Your tracking number and invoice will be emailed when your order ships.

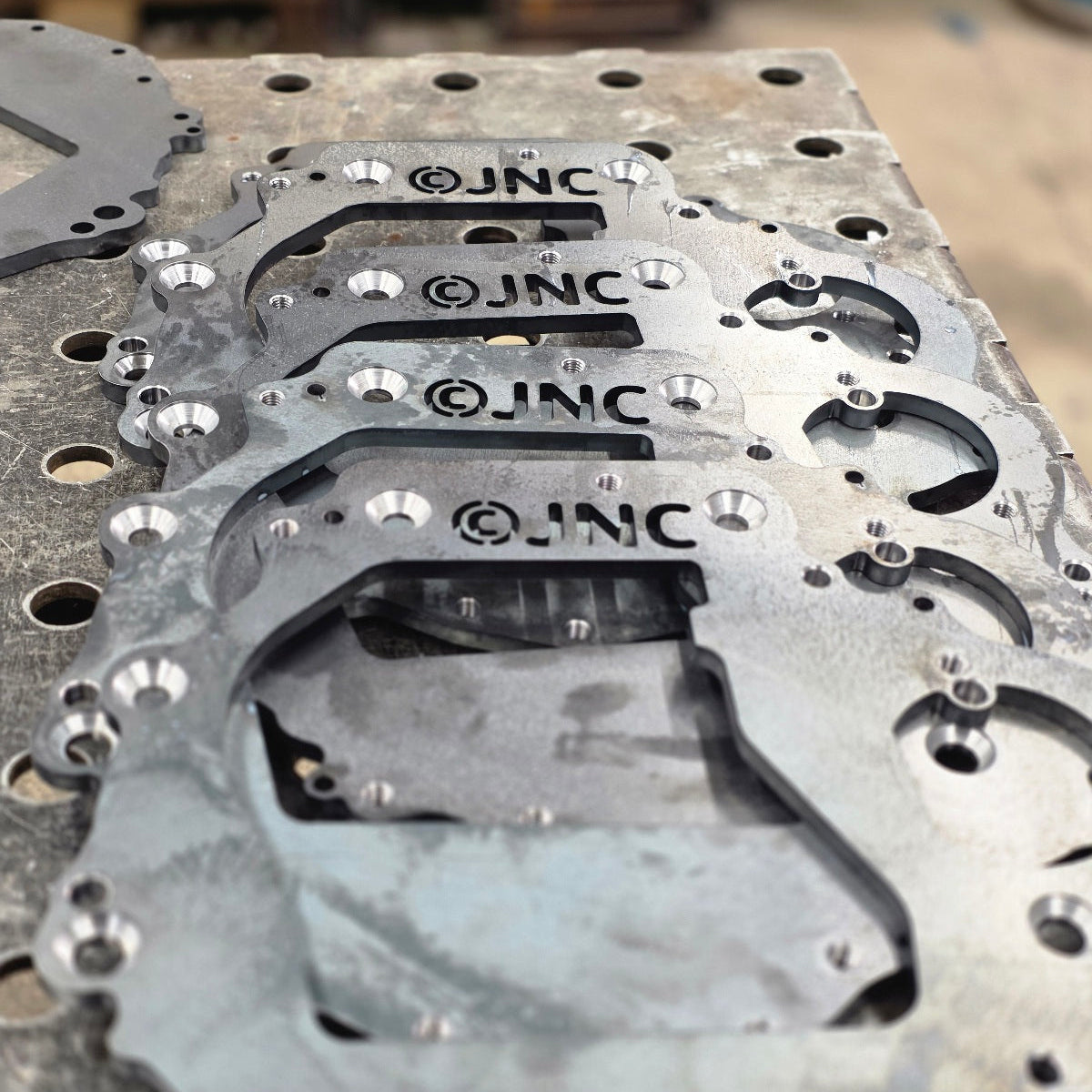

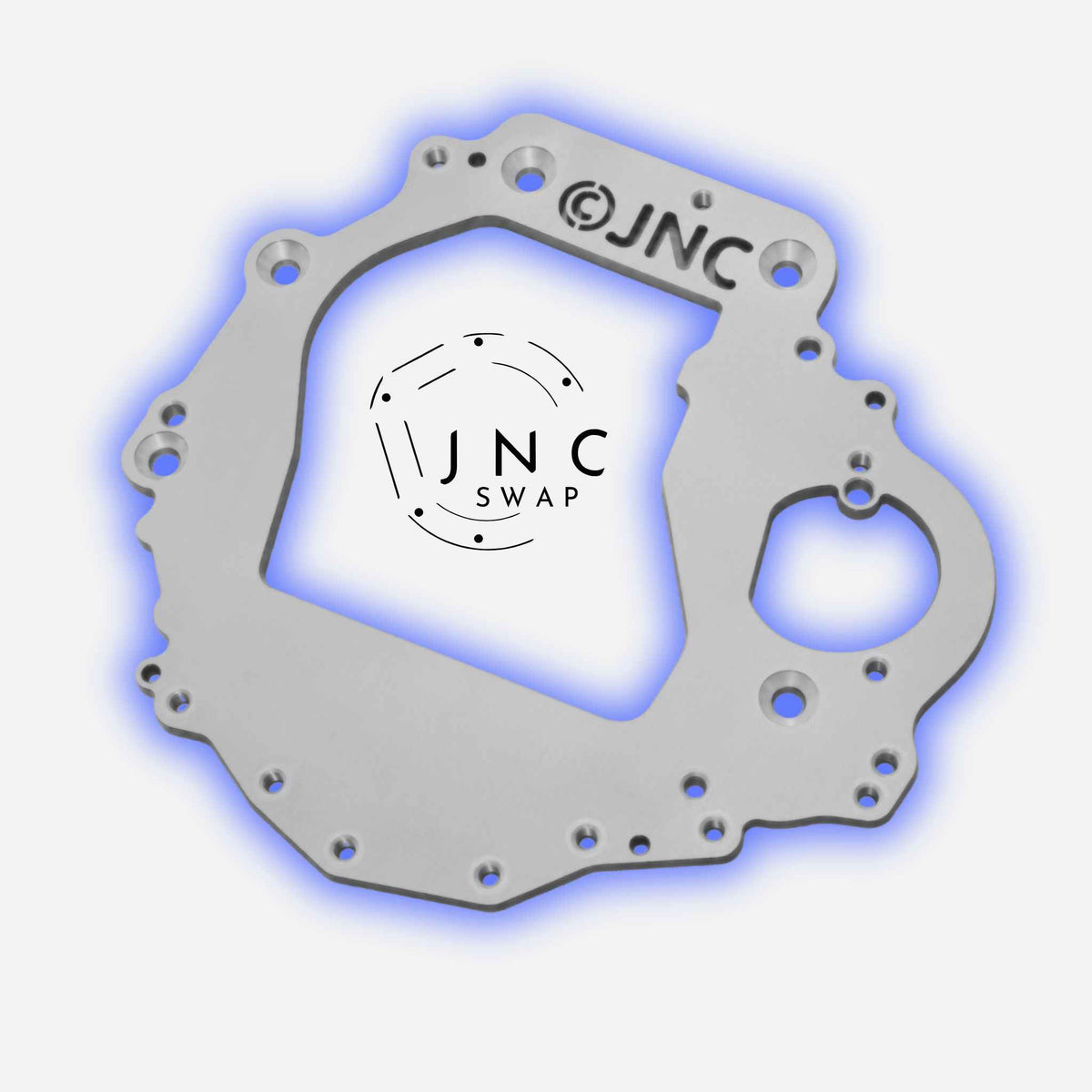

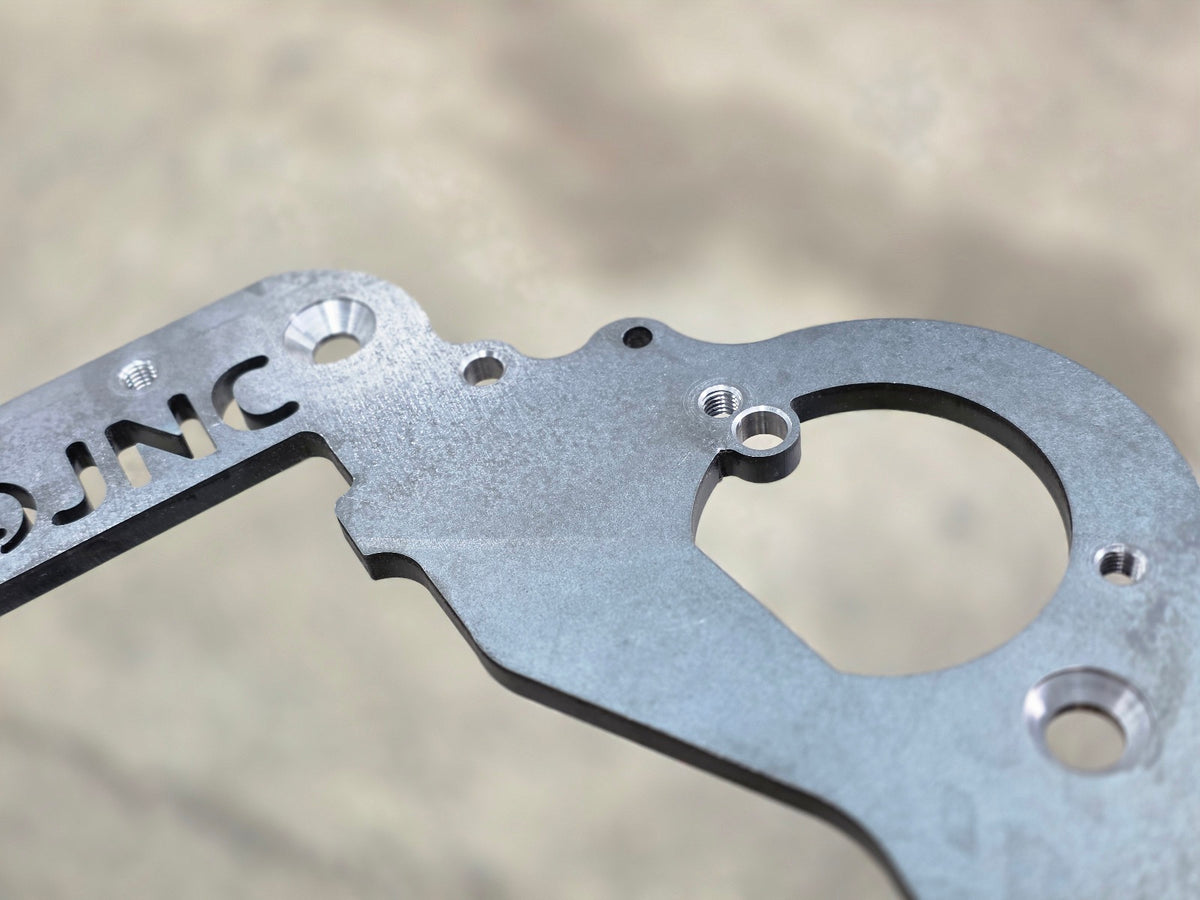

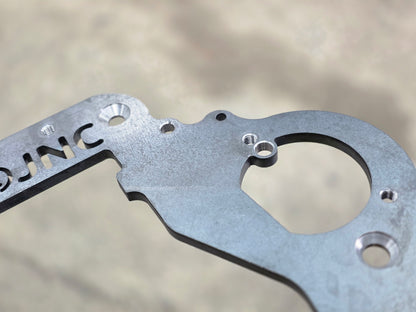

CNC-machined, CAD-designed swap adapter developed from a precise 3D scan of a Ford Sierra gearbox. The adapter connects VW 1.9 TDI and 1.8T engines to compatible Ford gearboxes.

13° engine angle: The gearbox remains in its original factory position and angle, while the VW engine is tilted 13° to the right when viewed in the direction of travel. This configuration allows the engine to fit properly under the bonnet of your Ford.

Custom engine angles are available upon request. Please feel free to contact us.

▶ Compatible Engines

The distance between the VW engine dowel pins is 306 mm.

  • VE pump 1.9 TDI: 1Z, AHU, AGR, AHH, ALE, ALH, AFN, AHF, ASV, AVB, AVG
    (These engines can be rebuilt into fully mechanical "MTDI" engines.) etc....
  • PD (Pumpe Düse) 1.9 TDI: BSU, BRU, BXF, BXJ, ANU, ATD, AXR, BEW, BMT, AVB, AVQ, BSW, BJB, BKC, BLS, BSV, BXE, BPZ, AJM, ATJ, AUY, BVK, AWX, ASZ, AVF, BLT, ARL, BTB, BPX, BUK, etc......
  • 1.8T: BEA, AWT, ARX, ARZ, AWC, BJX, BAM, APX, AMK, BVR, AJQ, AJL, APP, BBU, APY, AUQ, BEX, AYP, AVJ, ADR, AMB, AMU, APT, APU, ARG, ATC, ATW, AWM, AWP, 1.8i non-turbo engines, etc....
▶ Compatible Gearboxes
  • Ford Sierra 2.0i OHC (1987–1989), 2.0i 8V, 85 kW (115 HP)
  • Ford Sierra 2.0 OHC (1982–1989), 2.0 8V, 74–77 kW (101–105 HP)
  • Ford Sierra 1.8 OHC (1984–1988), 1.8 8V, 66 kW (90 HP)
  • Ford Sierra 1.6 OHC (1982–1989), 1.6 8V, 55 kW (75 HP)
  • Ford Granada Mk2 2.0 OHC (1983–1985), 2.0 8V
  • Ford Granada / Scorpio Mk3 2.0 OHC (1985–1988), 2.0 8V, 77 kW (105 HP)
  • Ford Granada / Scorpio Mk3 2.0i OHC (1985–1988), 2.0i 8V, 85 kW (115 HP)
  • Ford Capri Mk3 1.6 OHC (1983–1986), 1.6 8V
  • Ford Capri Mk3 2.0 OHC (1983–1986), 2.0 8V

Other vehicles with the same bellhousing as the one shown in the picture.

Reference gearbox used for 3D scanning: Ford part number 878T-7K400-AA / FOG0613

▶ Clutch Compatibility
  • VW/Audi starter 03G911023A + sierra/ford clutch disc + 050141117 228mm pressure plate + VW/Audi 026105269L single-mass flywheel



  • VW/Audi starter 03G911023A + sierra/ford clutch disc + Valeo kit 835005 / 701790 single-mass flywheel (or equivalents: val835041, F1A078NX, ADV183076)



  • Extreme power aplication: VW/Audi starter 03G911023A + 240 mm sierra/ford clutch disc + VW 2LT/TD28/AGK 240 mm pressure plate + redrill the VW/Audi 026105269L single-mass flywheel to fit this pressure plate. We can produce a custom 240 mm clutch plate for you with ceramic, Kevlar, or HDS friction material.  We can also produce custom center splines for rigid, unsprung clutch discs designed for the most extreme applications.



  • Thin aftermarket tuning flywheels with 132/135 teeth and ring gears on the engine block are also compatible with the 03G911023A starter.
▶ Package Contents

Adapter plate + 5 mounting screws.
