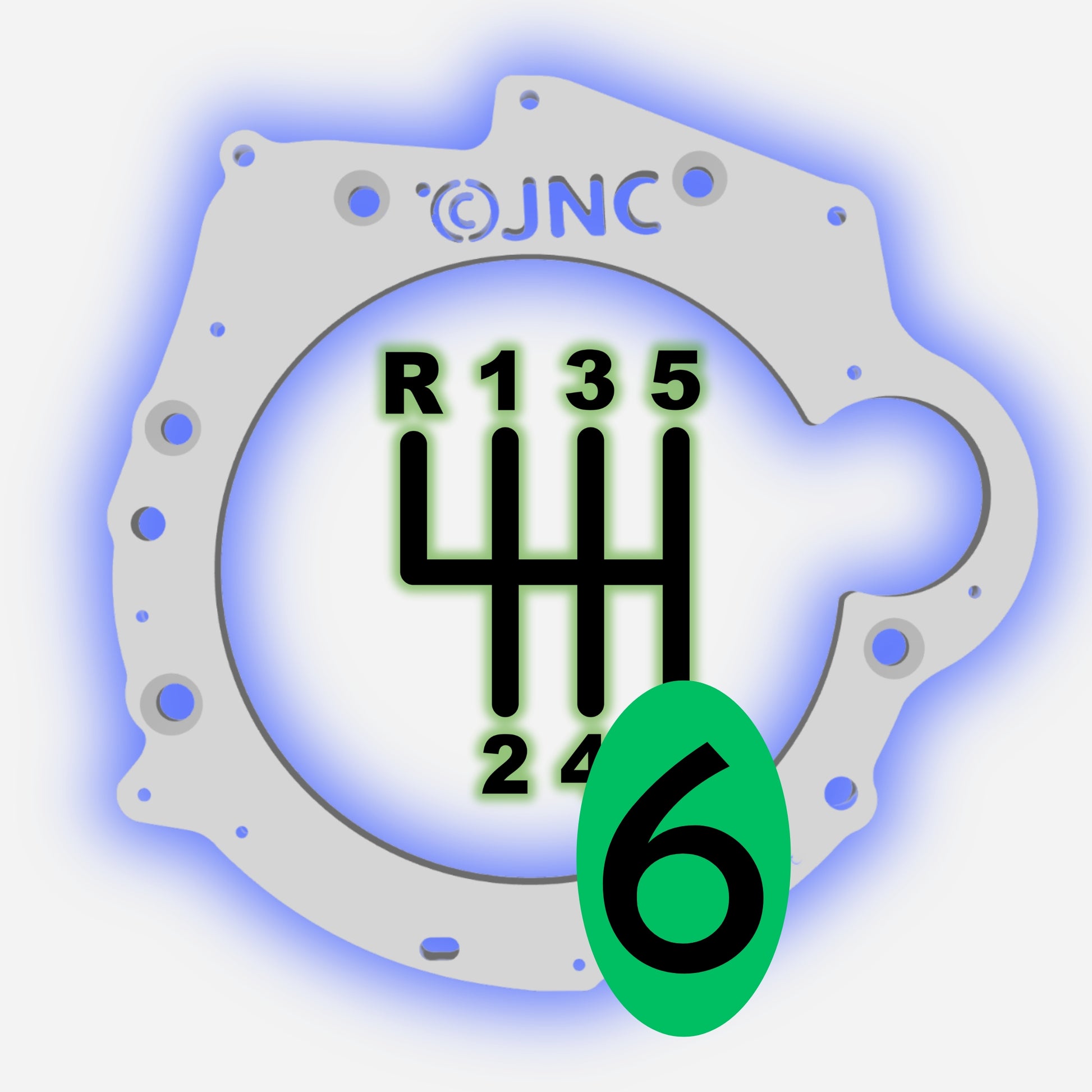

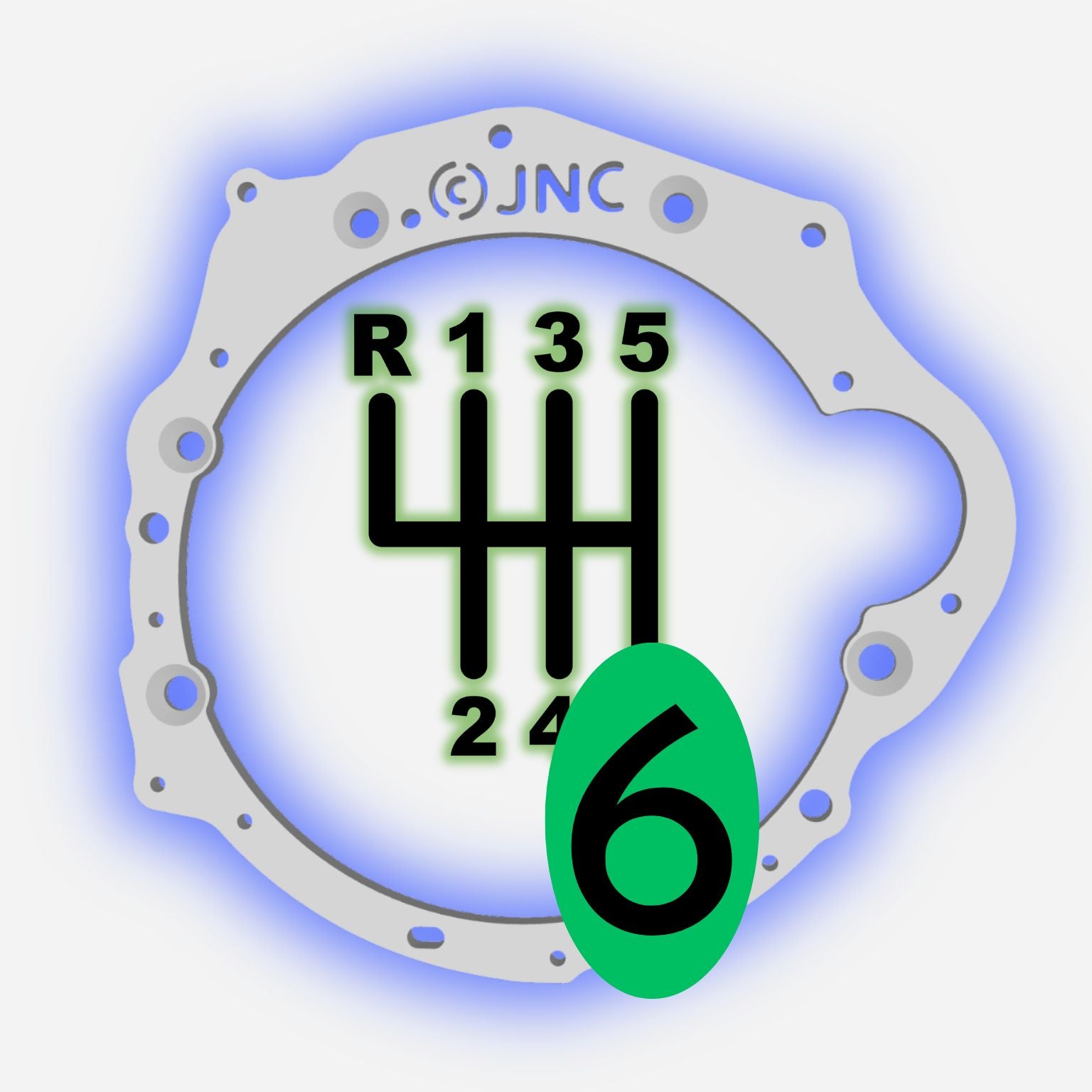

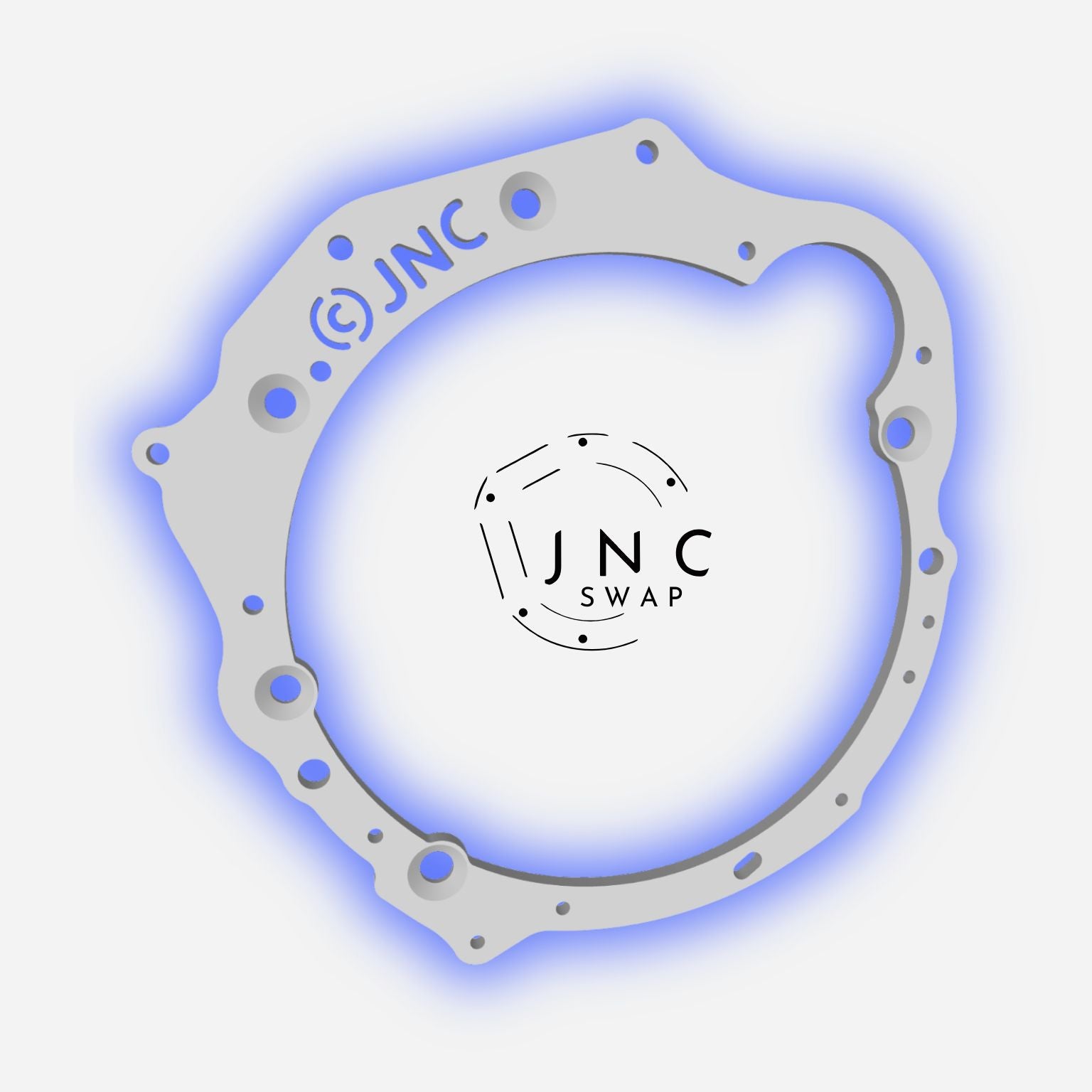

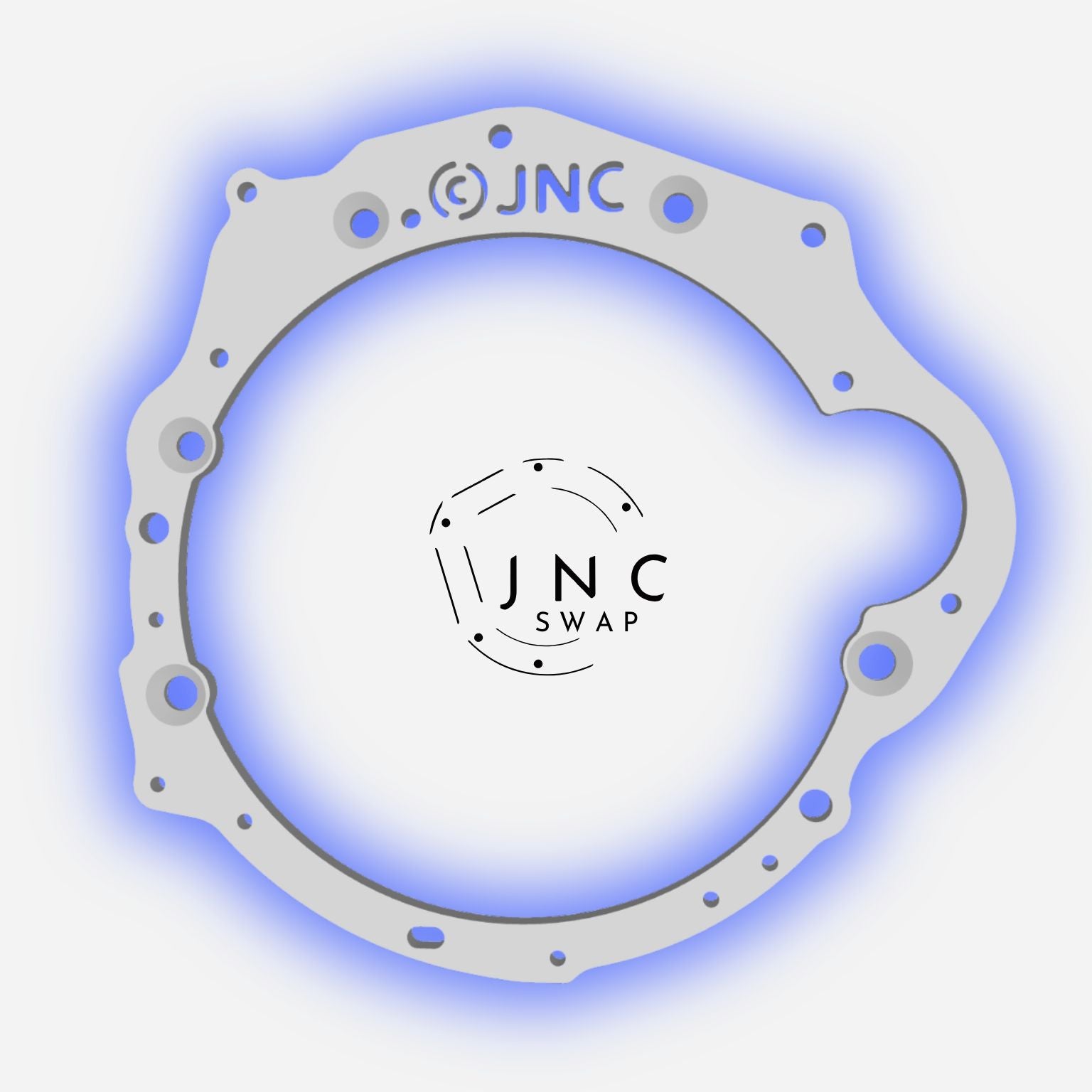

Lada Niva + bmw e36, e46 gearbox + VW 1.9 tdi, 1.8t Adapter

An adapter that allows you to swap a Volkswagen PD 1.9 TDI or 1.8T engine into your Lada Niva while using a BMW 5 speed/6 speed transmission together with the original Niva 4x4 transfer case.

BMW gearboxes can easily handle the power of VW engines, and they also allow you to use a larger clutch.

The engine-to-gearbox angle is 0 degrees, so the VW engine will stand straight under your hood. A 15-degree option is also available in the VW + BMW section.

Adapter is compatible with:

• VW/Audi 03G911023A starter, bmw clutch disc, 050141117 228mm pressure plate, VW/Audi 026105269L single-mass flywheel.

• Vw/audi 03G911023A starter, bmw clutch disc, clutch kit val835005 valeo 701790 single mass flywheel or equivalents on your market (val835041, val835005, F1A078NX, ADV183076)

• The adapter is also compatible with the 228mm dual-mass flywheel kit Valeo 837041 or equivalents, Vw/audi 03G911023A starter, bmw clutch disc,

• Valeo 835026 single-mass 240 mm conversion kit, used with a 10 mm spacer between the crankshaft and flywheel, and the Audi/VW starter (part number 068911024H) with the starter housing shortened by 10 mm, as shown in the VW Tips section.

• If you want to use the VAL835026 single-mass flywheel, or its 240 mm dual-mass version without a spacer, contact us via Gmail for a custom adapter plate modification.

The Adapter is compatible with the following gearboxes:

• E36: 316i, 318i, 320i, 323i
• E46: 316i, 318i, 320i, 323i, 325i, 328i
• E34: 520i, 525i, 530i
• Z3: 1.8, 1.9
• E39 525d / 530d m57 thin narrow block 1998–2003
• E38 730d narrow block 1998–2001
• E46 330d/330xd narrow block 1999–2005
• E46 320d m47 gearboxes 1998–2005

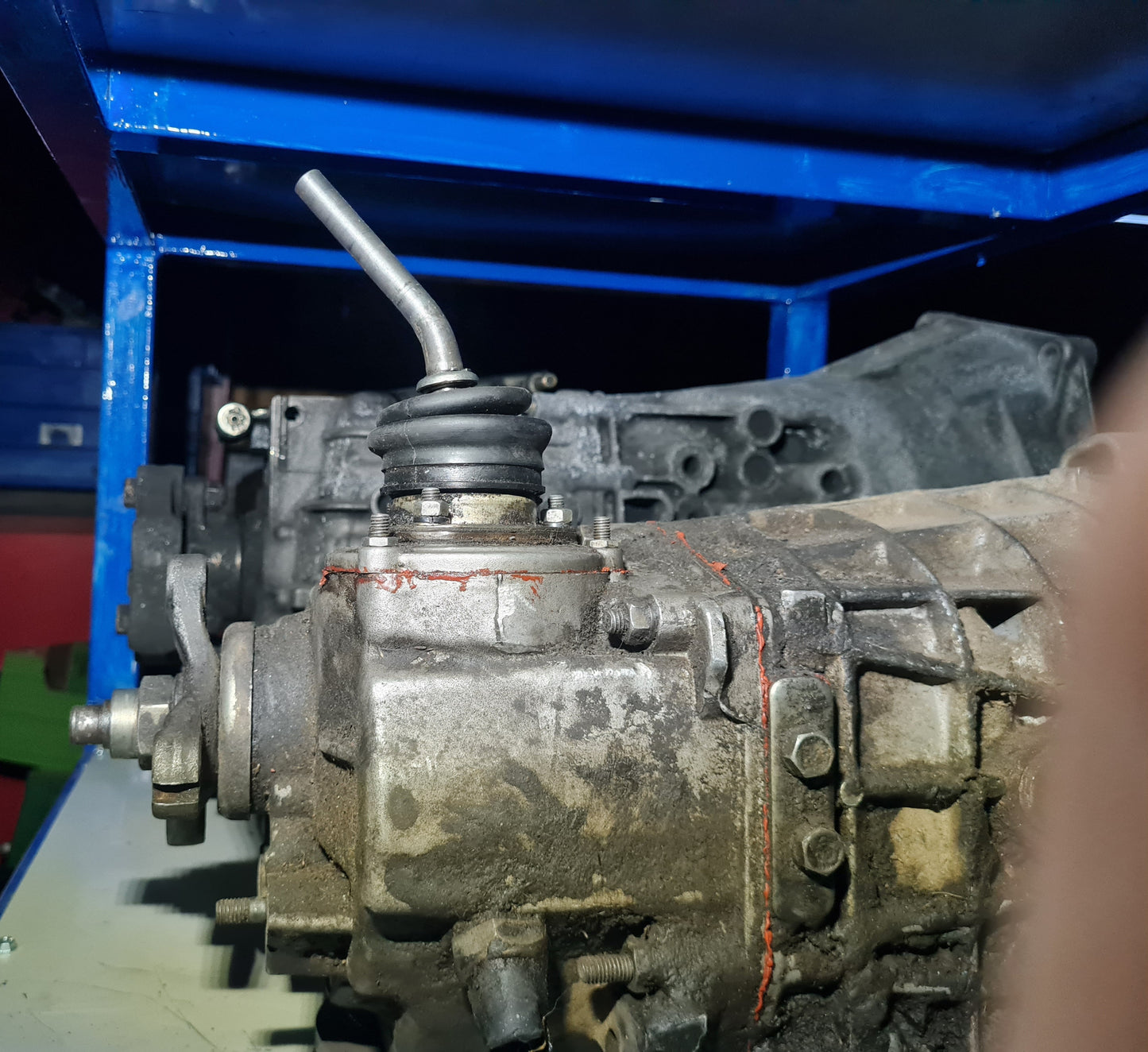

• Or simply measure your gearbox,  the dimensions are shown in the photos.

Package includes: Adapter and 5 cone head screws.

The adapter is compatible with the following engines:

• VE pump 1.9tdi: 1Z, AHU, AGR, AHH, ALE, ALH, AFN, AHF, ASV, AVB, AVG (These engines can be rebuilt into fully mechanical "MTDI" engines.)
• PD (pumpe duse) 1.9tdi: BSU, BRU, BXF, BXJ, ANU, ATD, AXR, BEW, BMT, AVB, AVQ, BSW, BJB, BKC, BLS, BSV, BXE, BPZ, AJM, ATJ, AUY, BVK, AWX, ASZ, AVF, BLT, ARL, BTB, BPX, BUK
• 1.8t: BEA, AWT, ARX, ARZ, AWC, BJX ,BAM, APX, AMK, BVR, AJQ, AJL, APP, BBU, APY, AUQ, BEX, AYP, AVJ, ADR, AMB, AMU, APT, APU, ARG, ATC, ATW, AWM, AWP, 1.8i non turbo engines,
