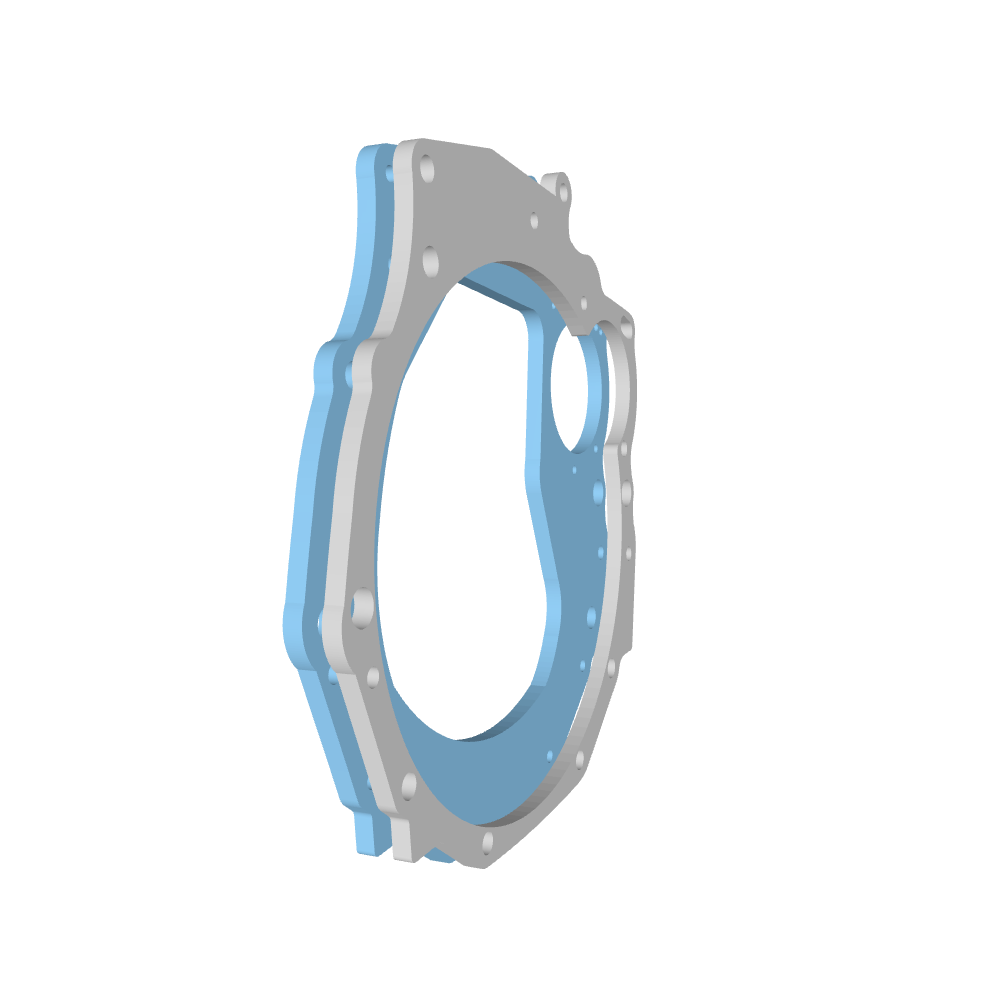

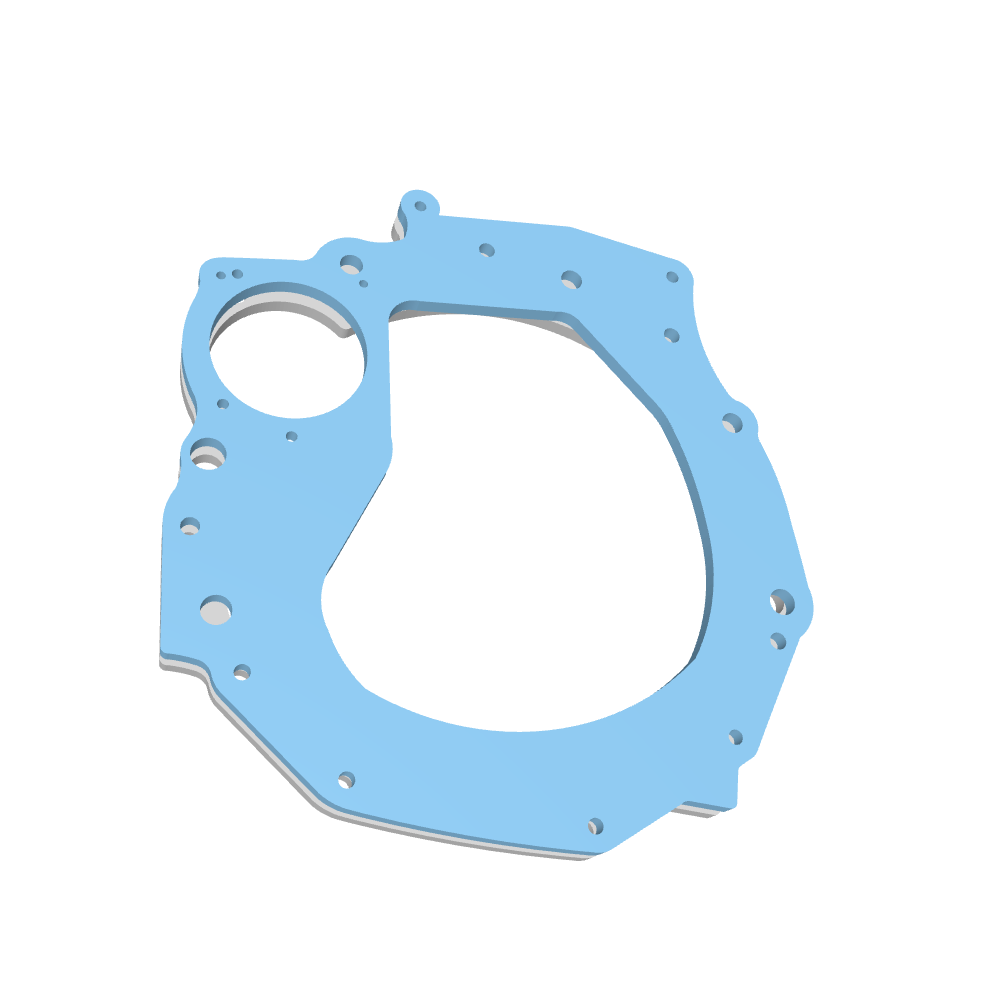

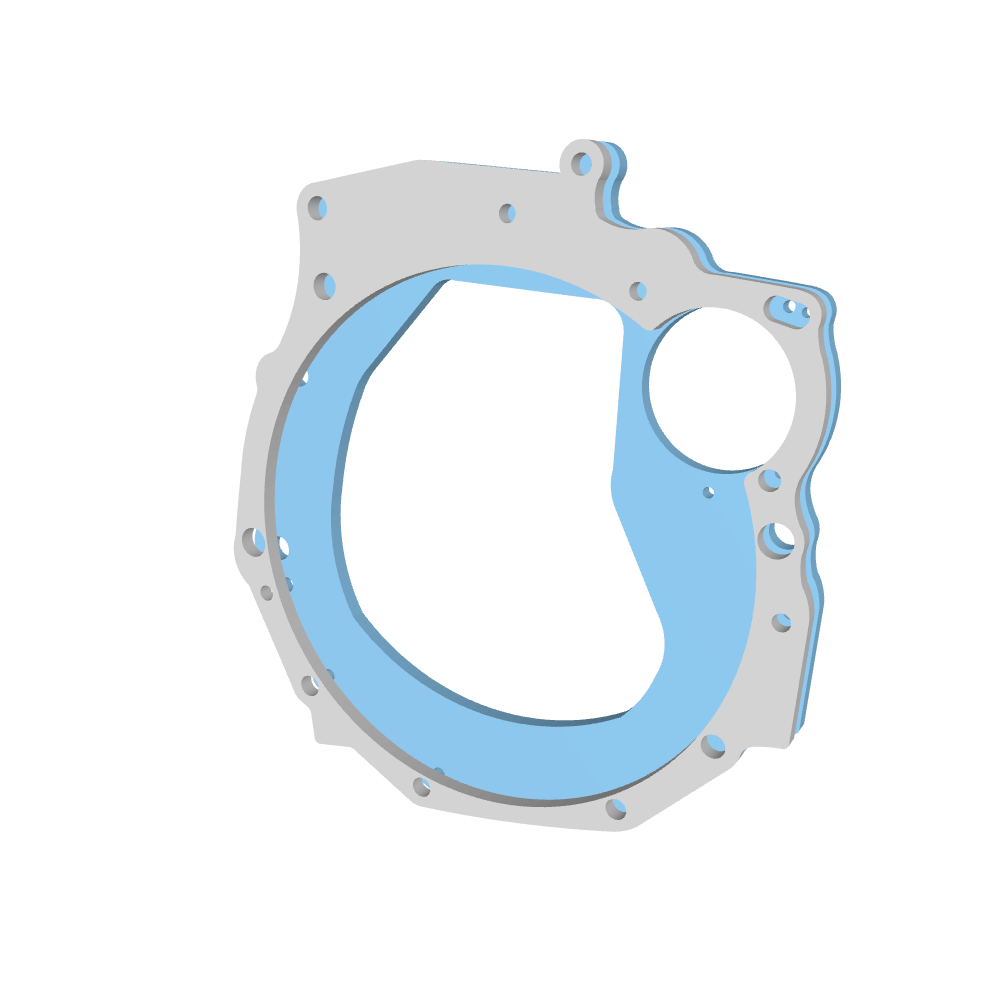

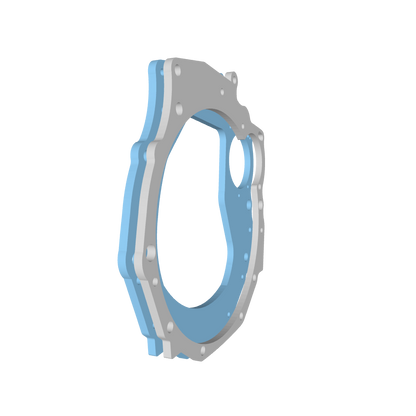

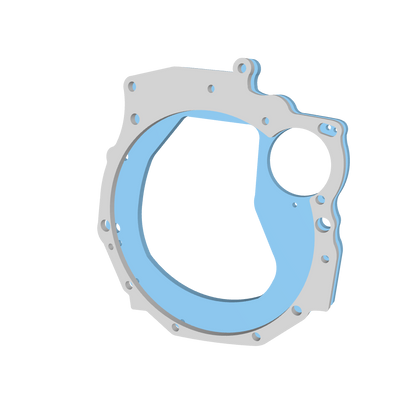

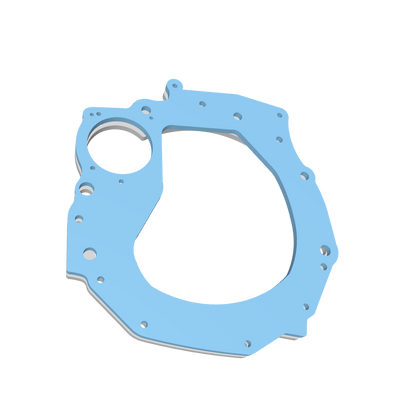

Miata + VW 1.8t, 1.9tdi adapter plate

Adapter plate for VW 1.9 TDI / 1.8T engines to Mazda Miata gearboxes.

This adapter is designed to work with the original VW starter, VW flywheel, and VW pressure plate, utilizing a Miata clutch disc. The plate sets the engine-to-gearbox tilt at a 13-degree angle and features a repositioned starter, located higher within the bellhousing. Please note that additional turbocharger modifications or upgrades may be required due to the engine tilt and positioning.

The adapter is compatible with the following engines:

• VE pump 1.9tdi: 1Z, AHU, AGR, AHH, ALE, ALH, AFN, AHF, ASV, AVB, AVG (These engines can be rebuilt into fully mechanical "MTDI" engines.)
• PD (pumpe duse) 1.9tdi: BSU, BRU, BXF, BXJ, ANU, ATD, AXR, BEW, BMT, AVB, AVQ, BSW, BJB, BKC, BLS, BSV, BXE, BPZ, AJM, ATJ, AUY, BVK, AWX, ASZ, AVF, BLT, ARL, BTB, BPX, BUK
• 1.8t: BEA, AWT, ARX, ARZ, AWC, BJX ,BAM, APX, AMK, BVR, AJQ, AJL, APP, BBU, APY, AUQ, BEX, AYP, AVJ, ADR, AMB, AMU, APT, APU, ARG, ATC, ATW, AWM, AWP, 1.8i non turbo engines,

Package includes: Adapter and 5 cone head screws.
